TurboSystems HTX4068B1 turbocharger

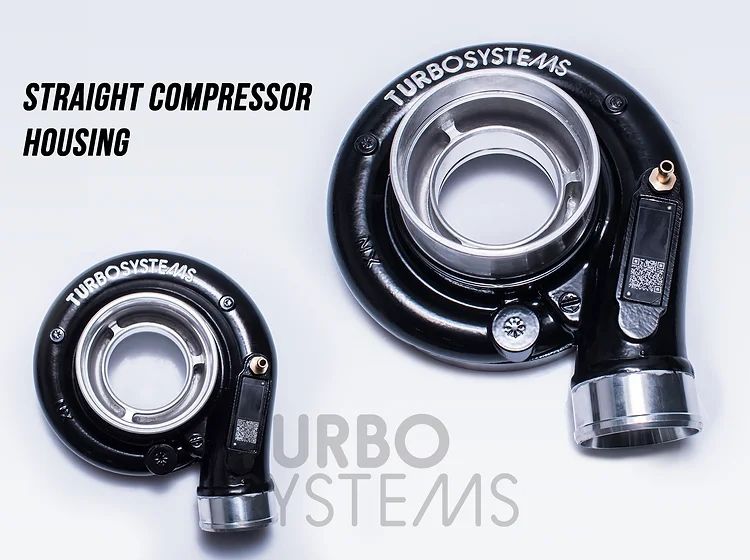

High performance turbocharger designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection.Stainless steel housing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.

• Power range: 600-850 HP;
• Displacement of the engine: 1.8-4.0l

Compressor side:

• Compressor wheel: in-house made, reinforced 68/84mm 10+0 blades machined from the solid aluminium;
• Intake: 101mm (4");
• Air outlet: 63mm (2.5");

Core:

• Bearings: dual ceramic ball bearings;
• Cooling: water cooling with 2 x M14x1.5 ports;
• Lubrication: AN4 oil inlet with integrated oil restrictor;

Turbine side:

• Housing: twin scroll, AR: 1.02;
• Turbine wheel: custom design 76/68mm 10 blades
• Flange: T4 twin scroll;

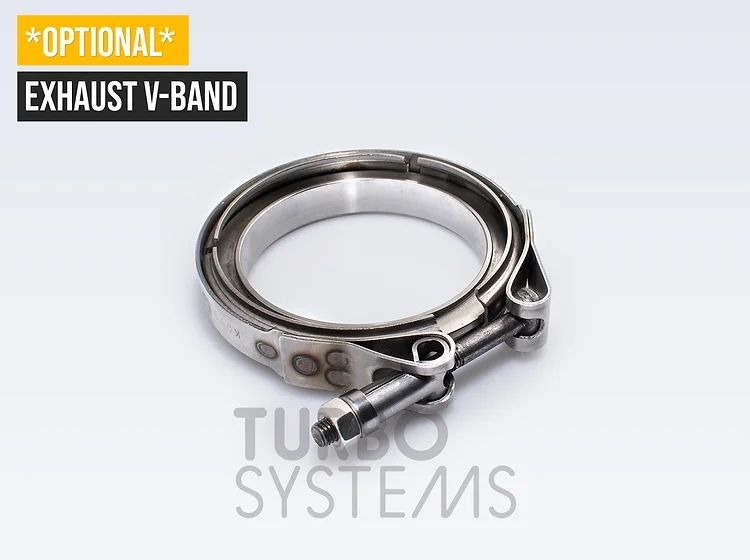

• Exhaust connection: 3" V-band clamp;

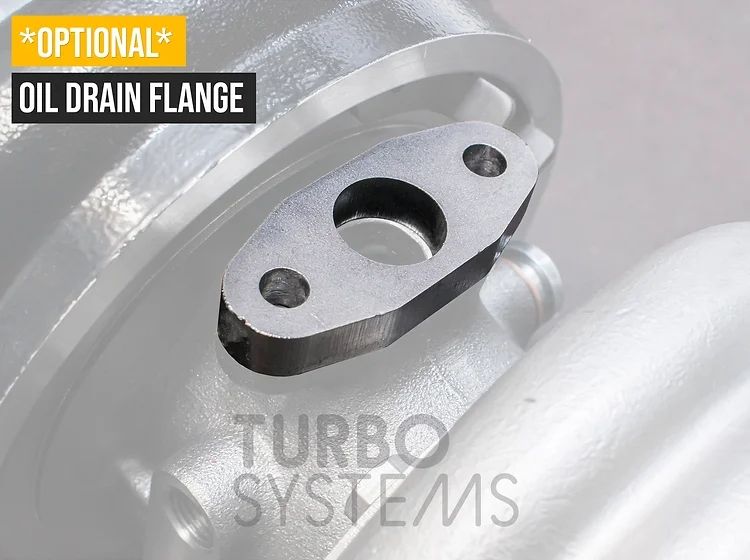

Oil drain flange and exhaust side v-band clamp included
